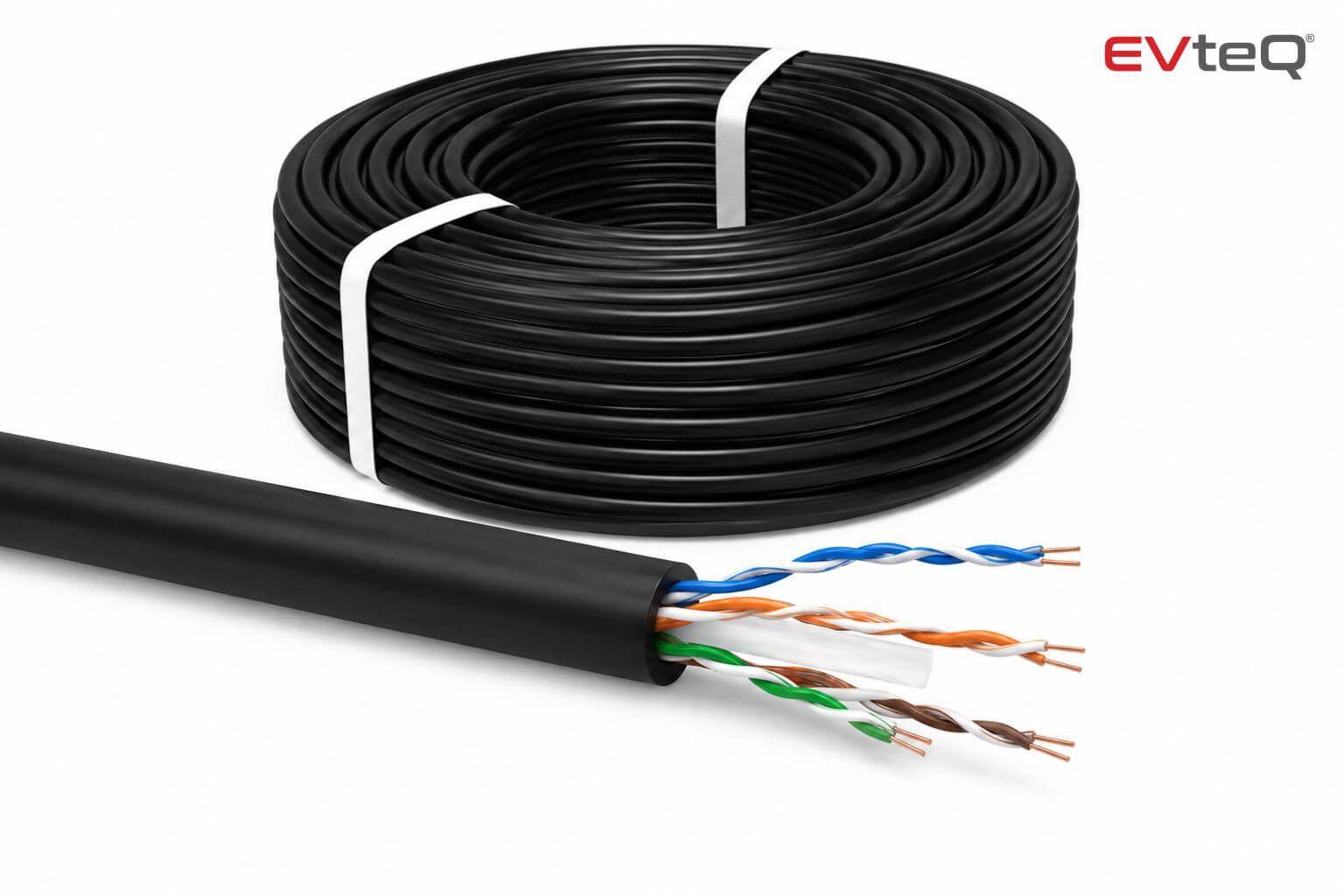

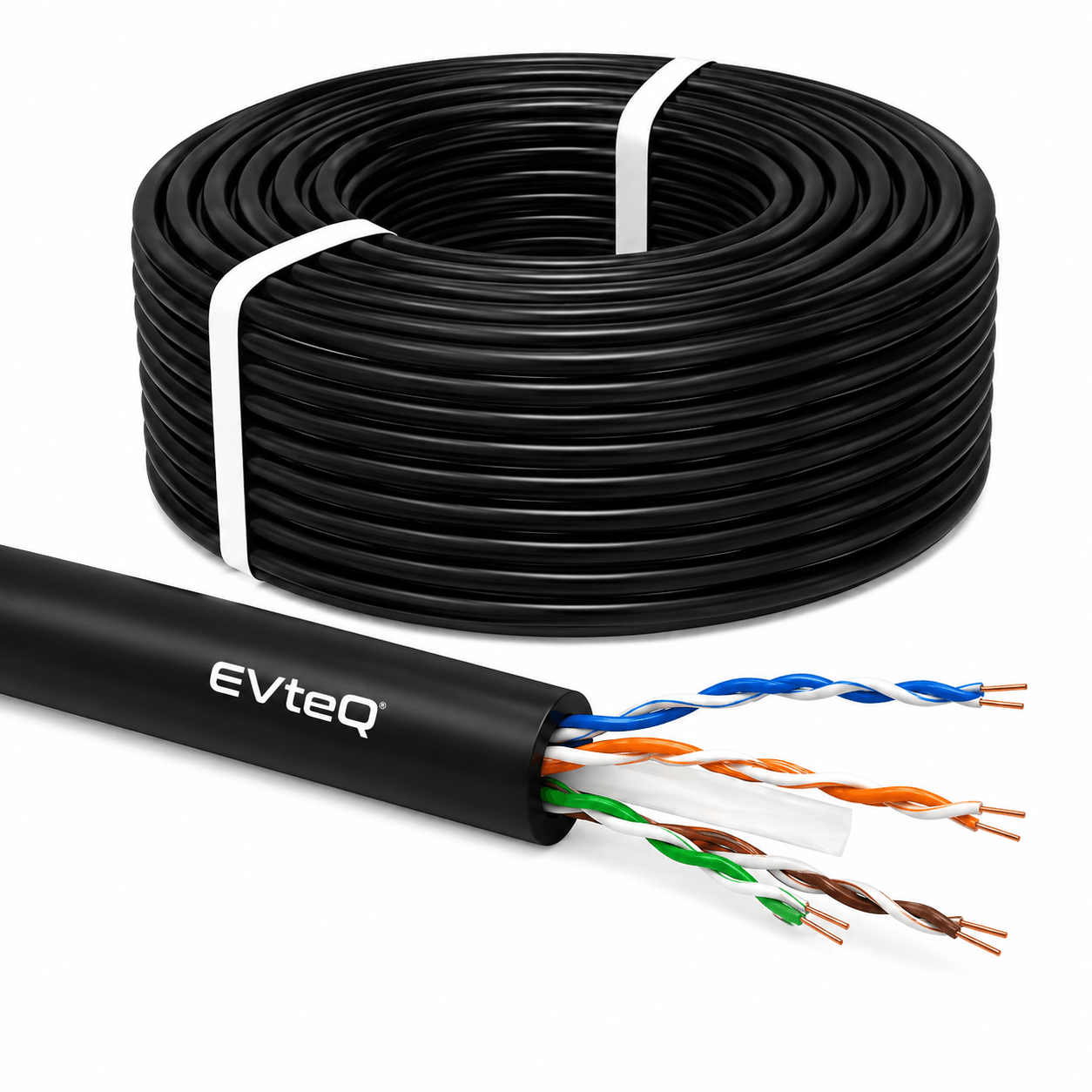

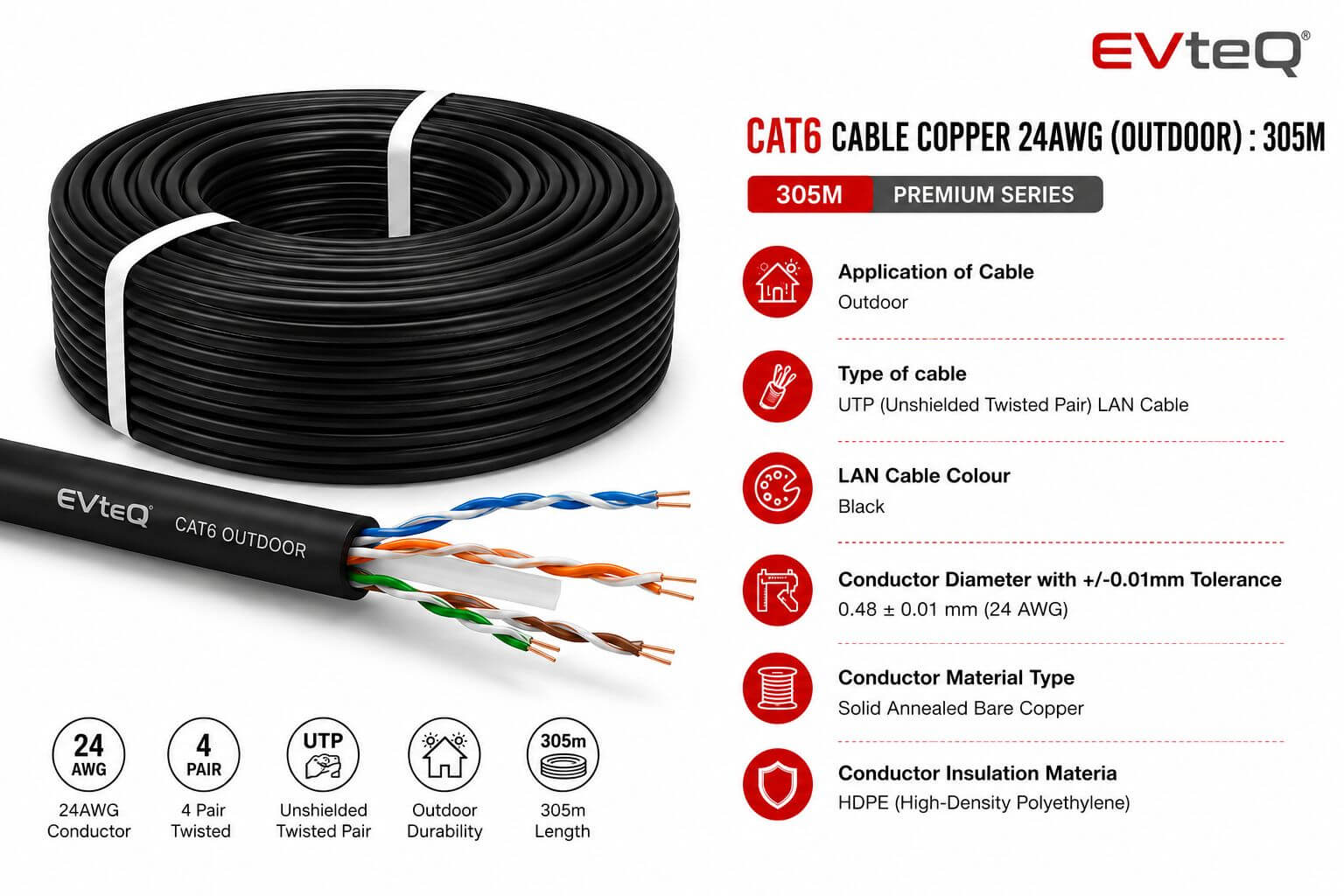

CAT6 Cable Copper 24AWG (Outdoor) : 305M
Specification
| Parameter | Specification |
|---|---|
| Description of Store | CAT6 UTP 24AWG 4 Pair Outdoor LAN Cable (Premium Series) |
| Application of Cable | Outdoor |
| Cable Category | Cat 6 |
| Type of Cable | UTP (Unshielded Twisted Pair) LAN Cable |
| Colour | Black |

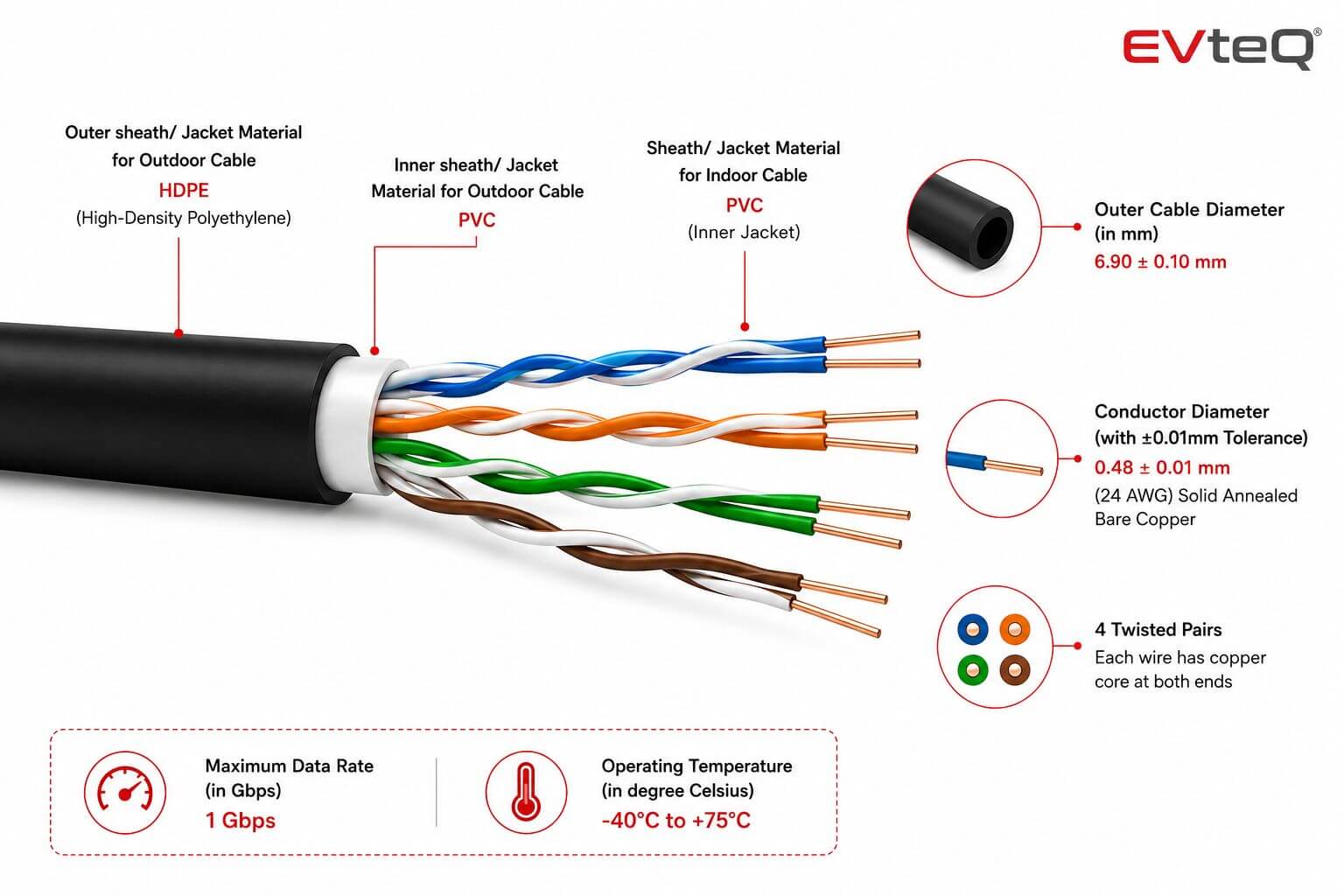

| CONDUCTOR | |
| Conductor Diameter (+/-0.01mm Tolerance) | 0.48 ± 0.01 mm (24 AWG) |
| Conductor Material Type | Solid Annealed Bare Copper |
| Conductor Insulation Material | HDPE (High-Density Polyethylene) |
| JACKET MATERIAL | |
| Outer Cable Diameter | 6.90 ± 0.10 mm |
| Sheath / Jacket Material for Indoor Cable | PVC (Inner Jacket) |
| Inner Sheath / Jacket Material for Outdoor Cable | PVC |
| Outer Sheath / Jacket Material for Outdoor Cable | HDPE (High-Density Polyethylene) |
| Armouring Material | No Armouring |
| PERFORMANCE | |
| Maximum Data Rate | 1 Gbps |
| Operating Temperature | -40°C to +75°C |
