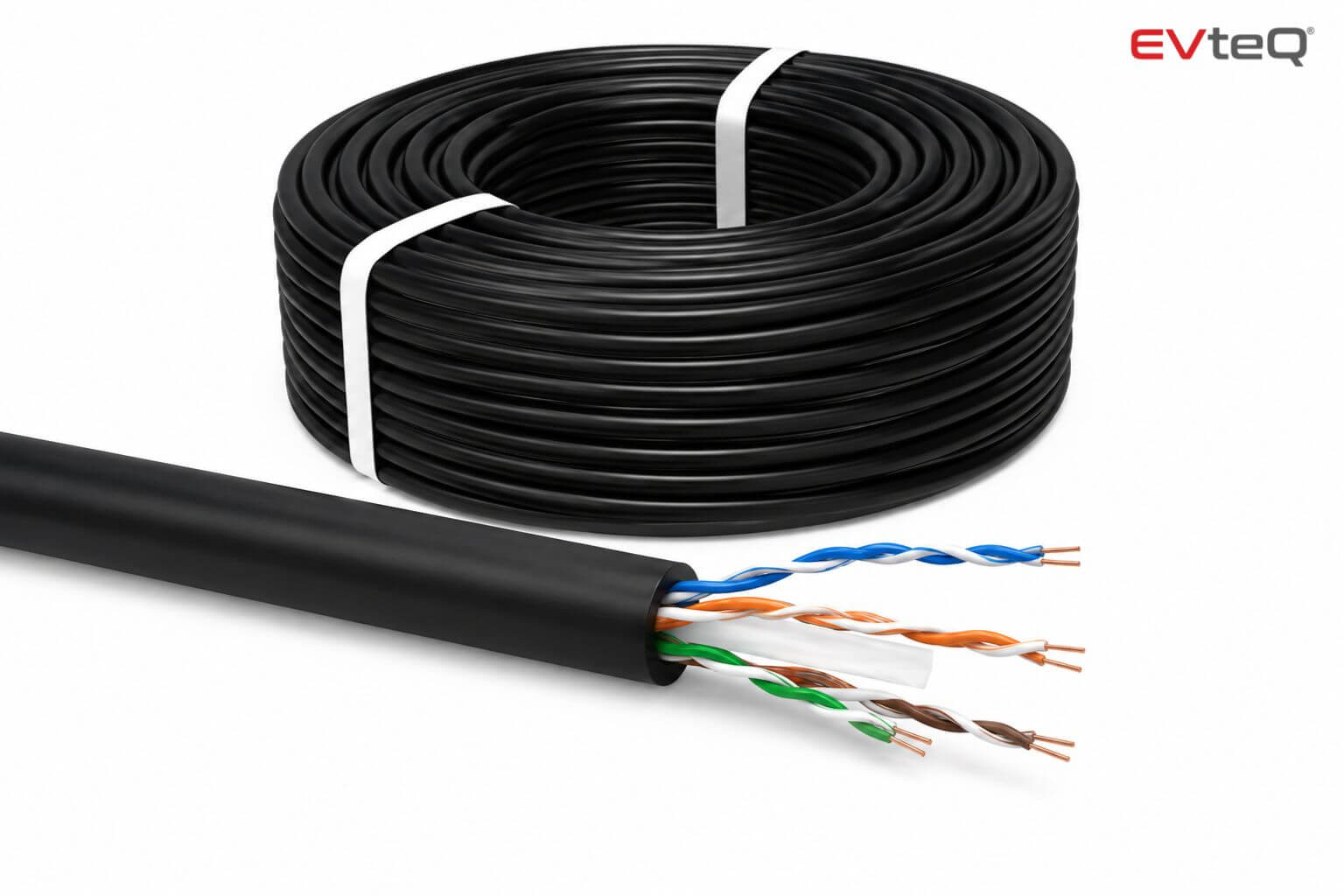

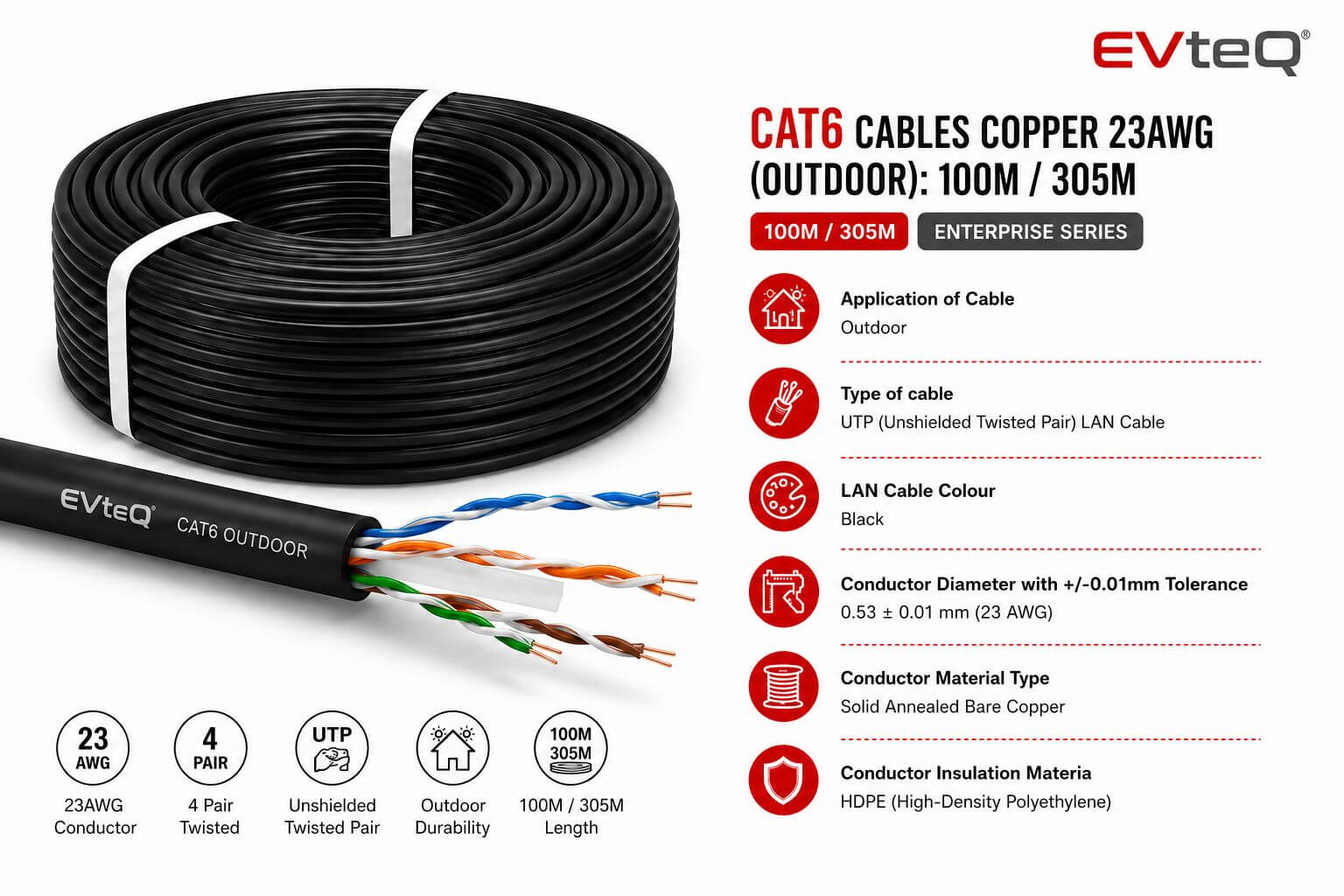

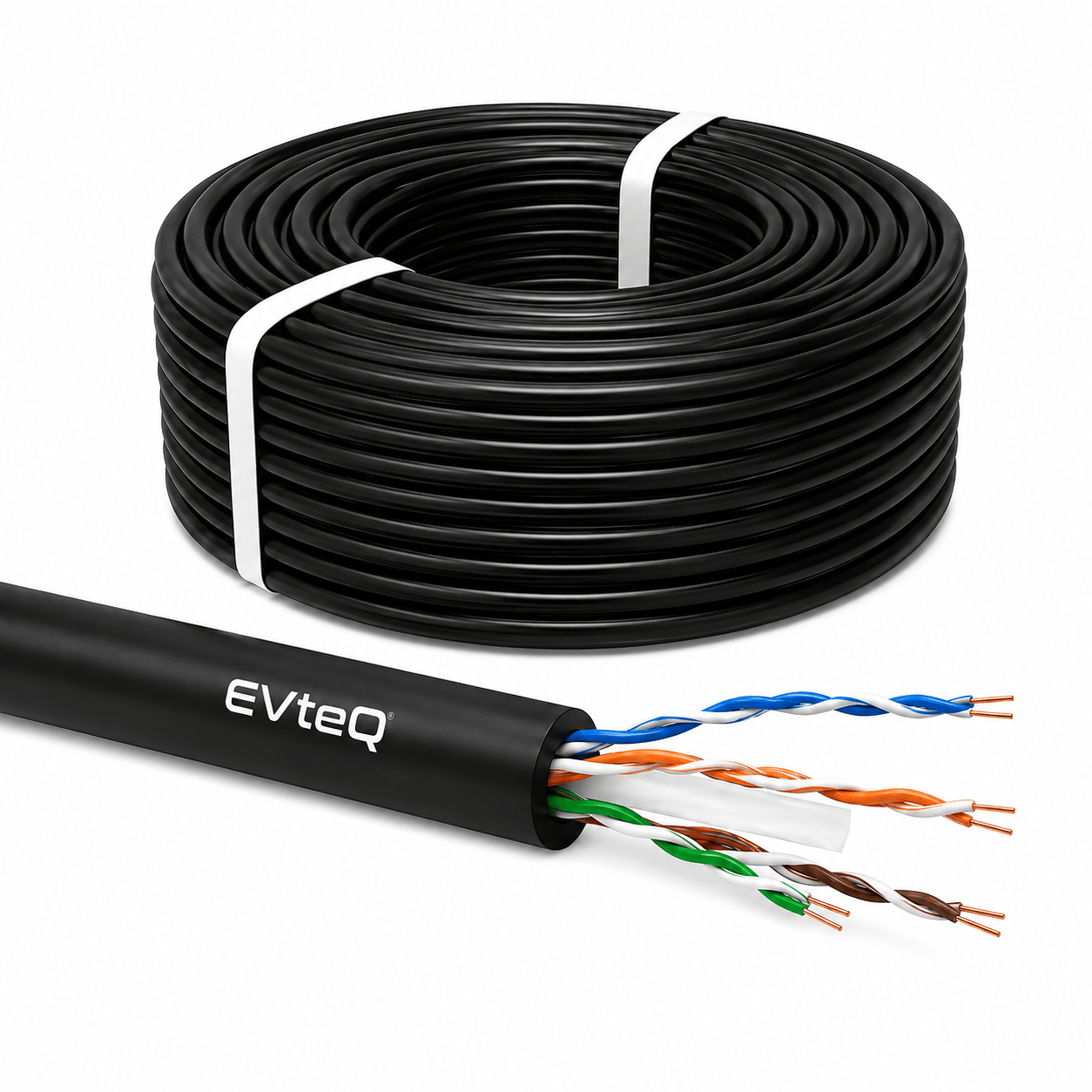

CAT6 Cables Copper 23AWG (Outdoor): 305M Enterprise Series)
Specification
| Parameter | Specification |
|---|---|
| Description of Store | CAT6 UTP 23AWG 4 Pair Outdoor LAN Cable (Enterprise Series) |
| Application of Cable | Outdoor |
| Cable Category | CAT 6 |
| Type of Cable | UTP (Unshielded Twisted Pair) LAN Cable |
| Colour | Black |

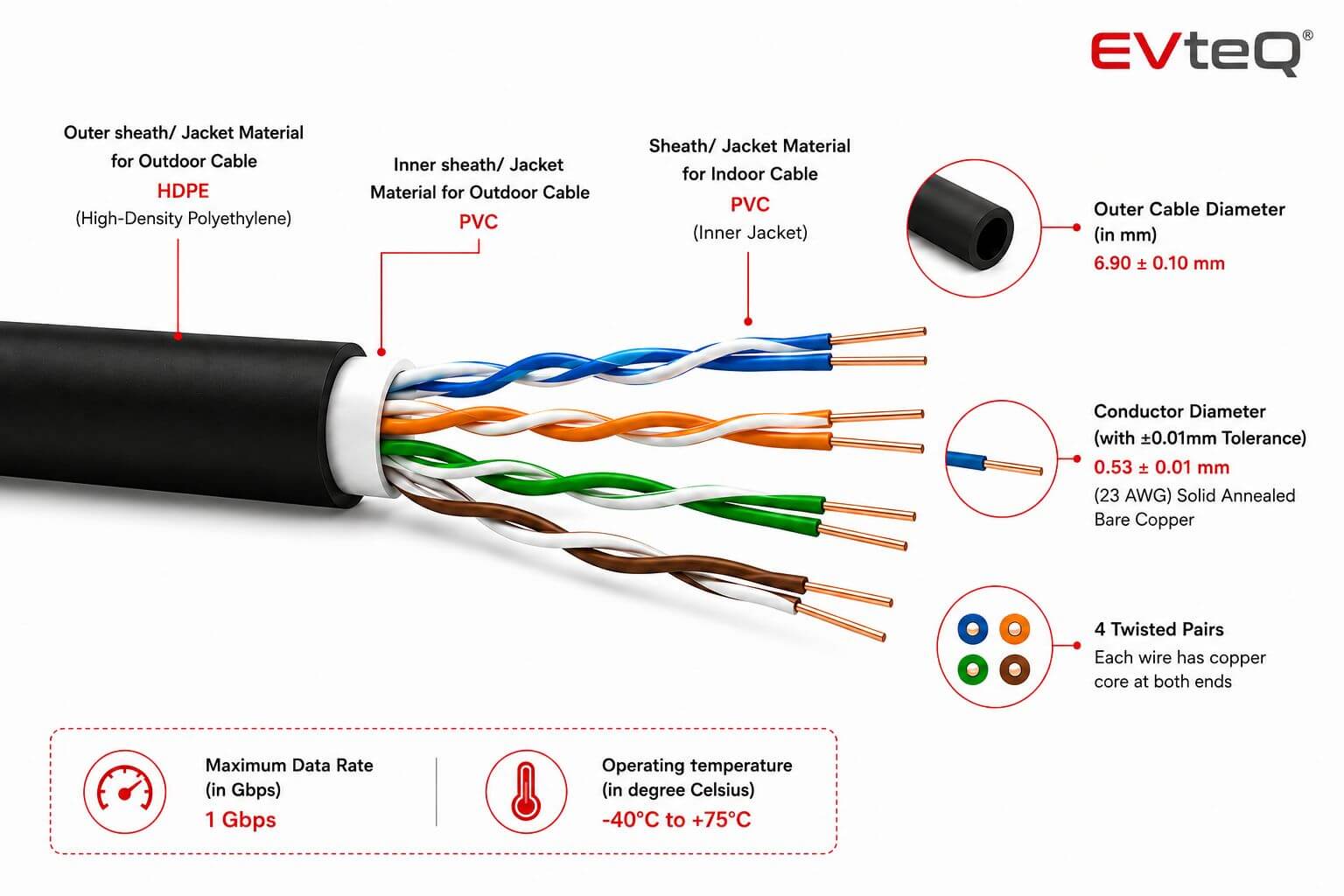

| CONDUCTOR | |
| Conductor Diameter (+/-0.01mm Tolerance) | 0.53 ± 0.01 mm (23 AWG) |
| Conductor Material Type | Solid Annealed Bare Copper |
| Conductor Insulation Material | HDPE (High-Density Polyethylene) |
| JACKET MATERIAL | |
| Outer Cable Diameter | 6.90 ± 0.10 mm |
| Sheath/Jacket Material for Indoor Cable | PVC (Inner Jacket) |
| Inner Sheath/Jacket Material for Outdoor Cable | PVC |
| Outer Sheath/Jacket Material for Outdoor Cable | HDPE (High-Density Polyethylene) |
| Armouring Material | No Armouring |
| PERFORMANCE | |
| Maximum Data Rate | 1 Gbps |
| Operating Temperature | -40°C to +75°C |
