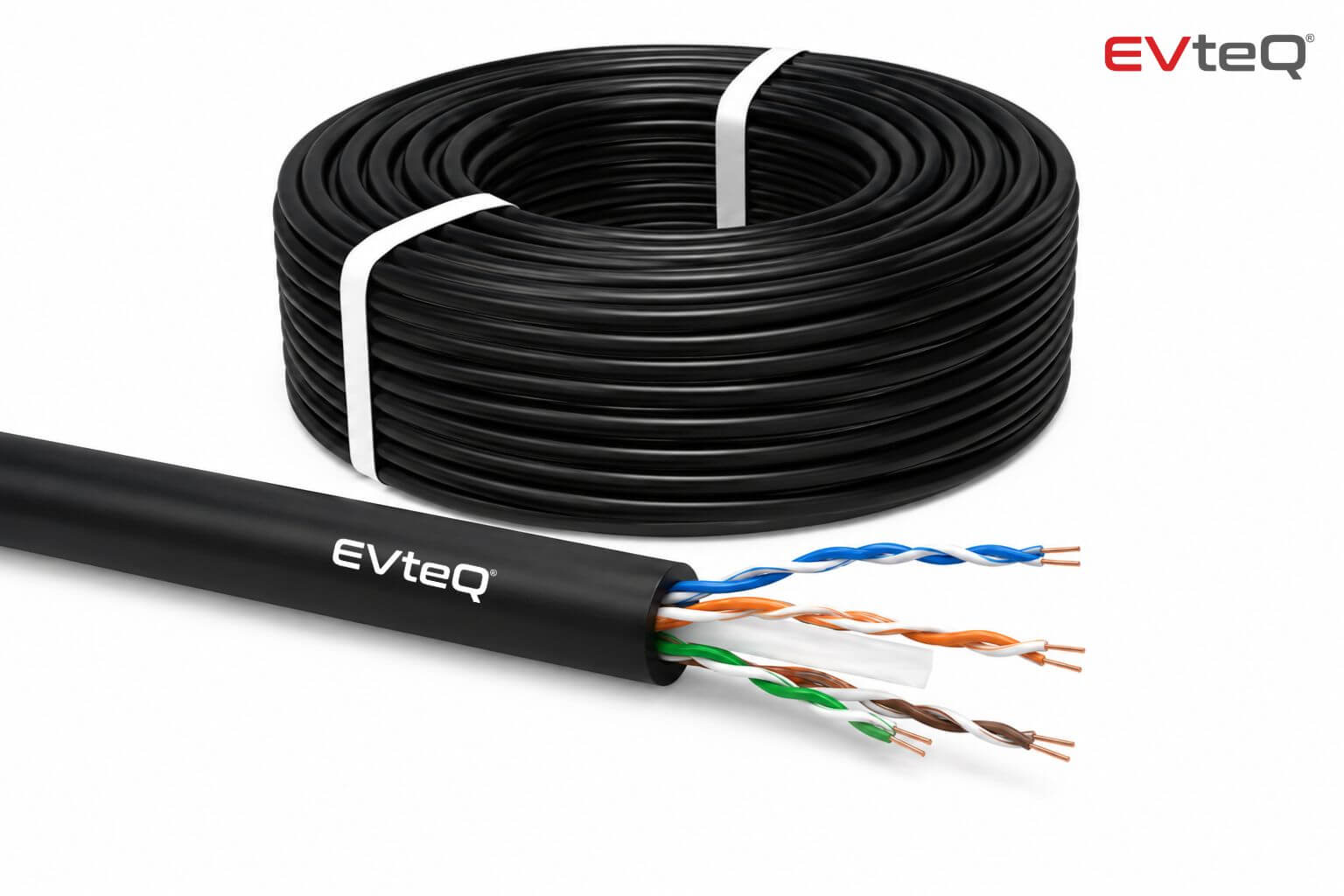

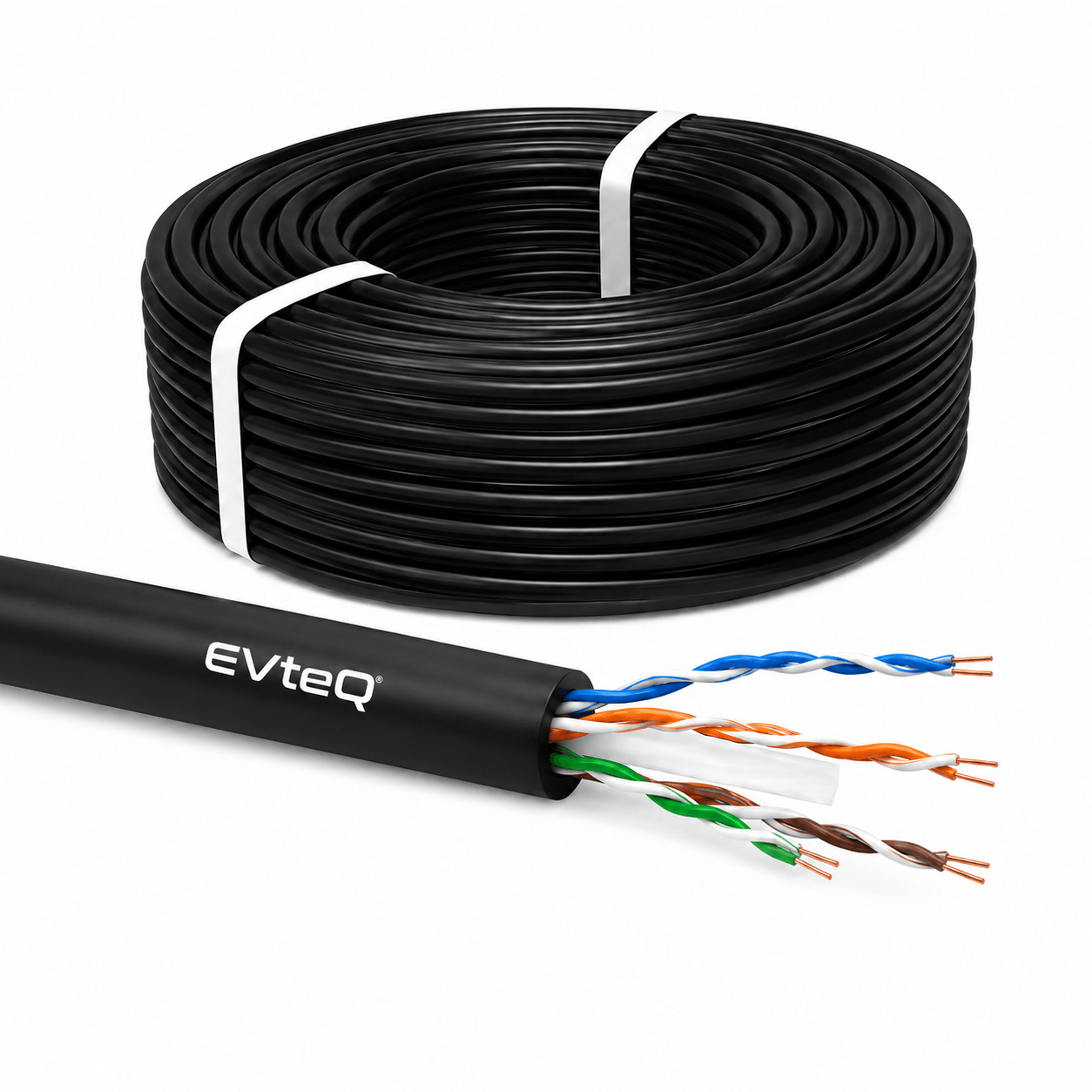

EVteQ EV-EC6-A-305MODV (VALUE CAT6 OUTDOOR )

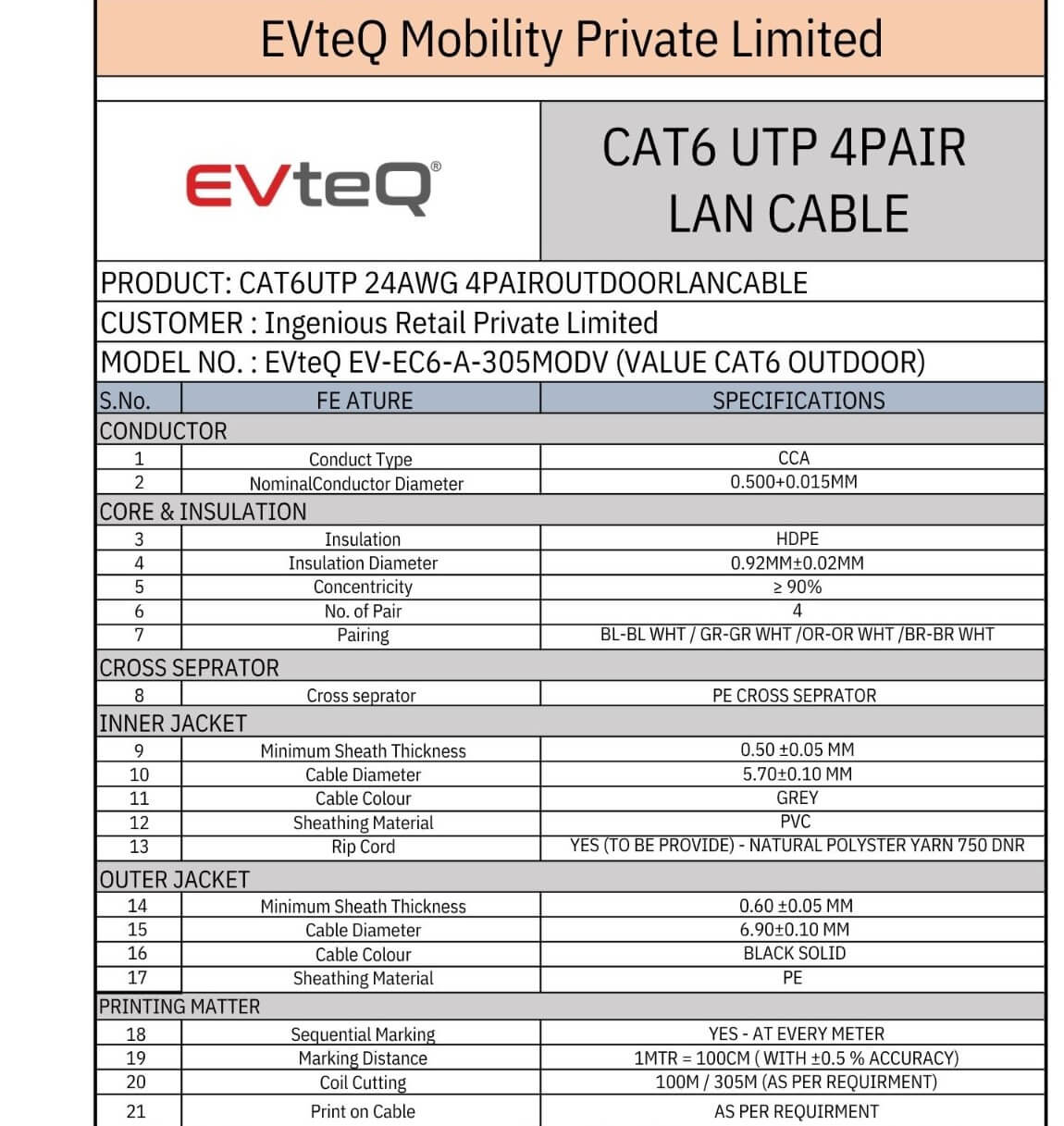

Specification
| Parameter | Specification |
|---|---|

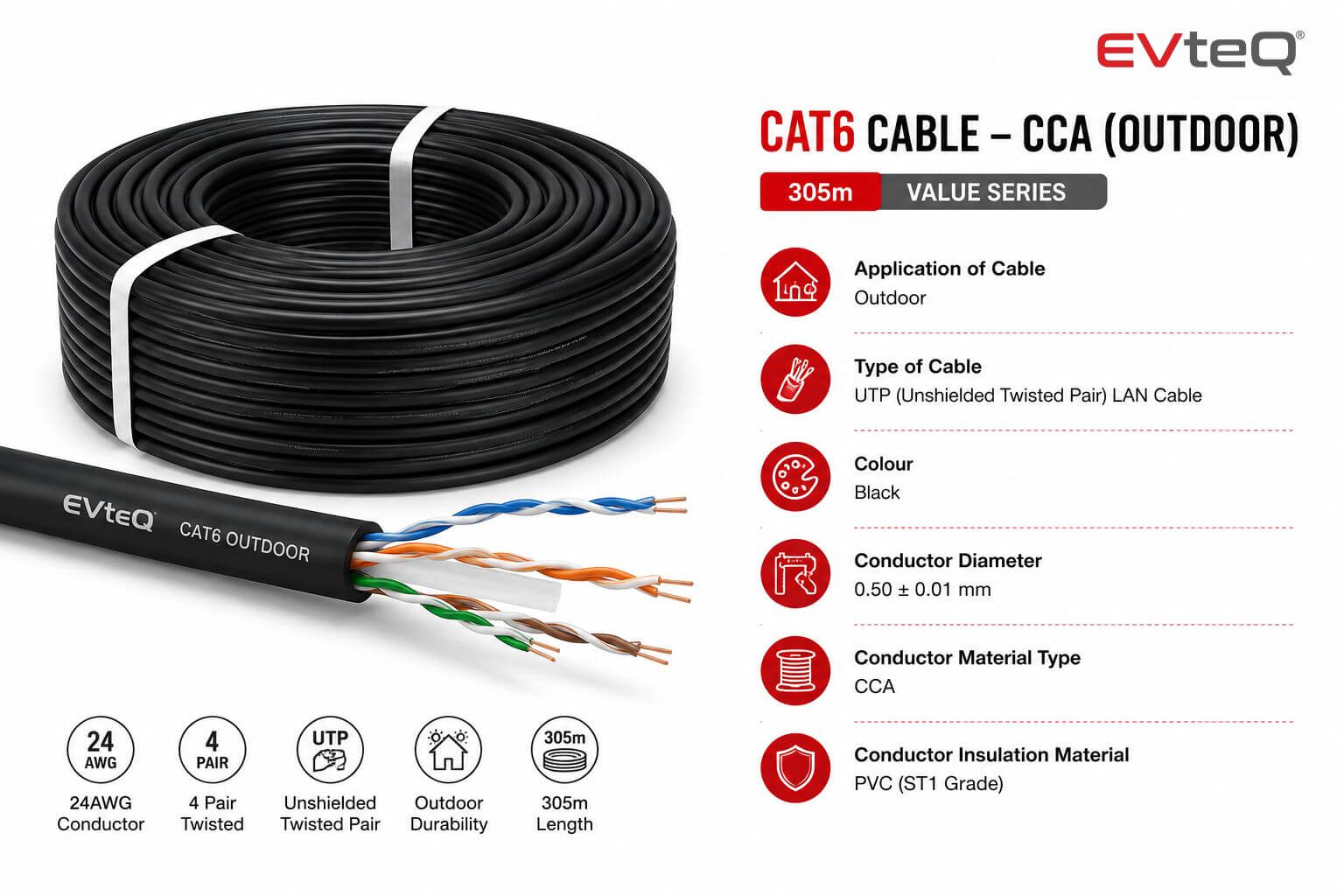

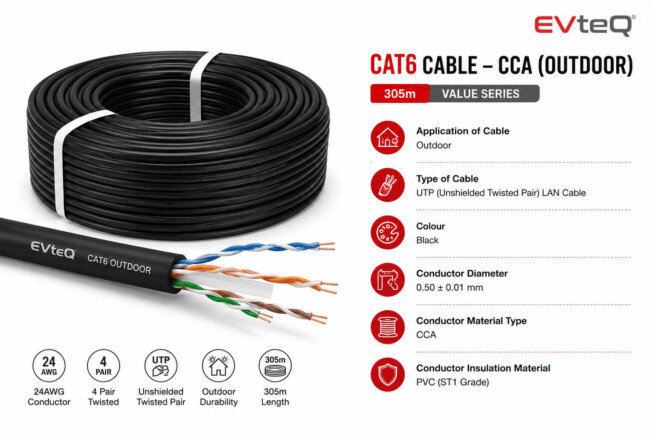

| Description of Store | CAT6 UTP 24AWG 4 Pair Outdoor LAN Cable – CCA (Value Series) |
| Application of Cable | Outdoor |
| Cable Category | Cat 6 |
| Type of Cable | UTP (Unshielded Twisted Pair) LAN Cable |
| Colour | Black |
| CONDUCTOR | |
| Conductor Diameter (+/-0.01mm) | 0.50 ± 0.01 mm |
| Conductor Material Type | CCA (Copper Clad Aluminium) |
| Conductor Insulation Material | PVC (ST1 Grade) |
| JACKET MATERIAL | |

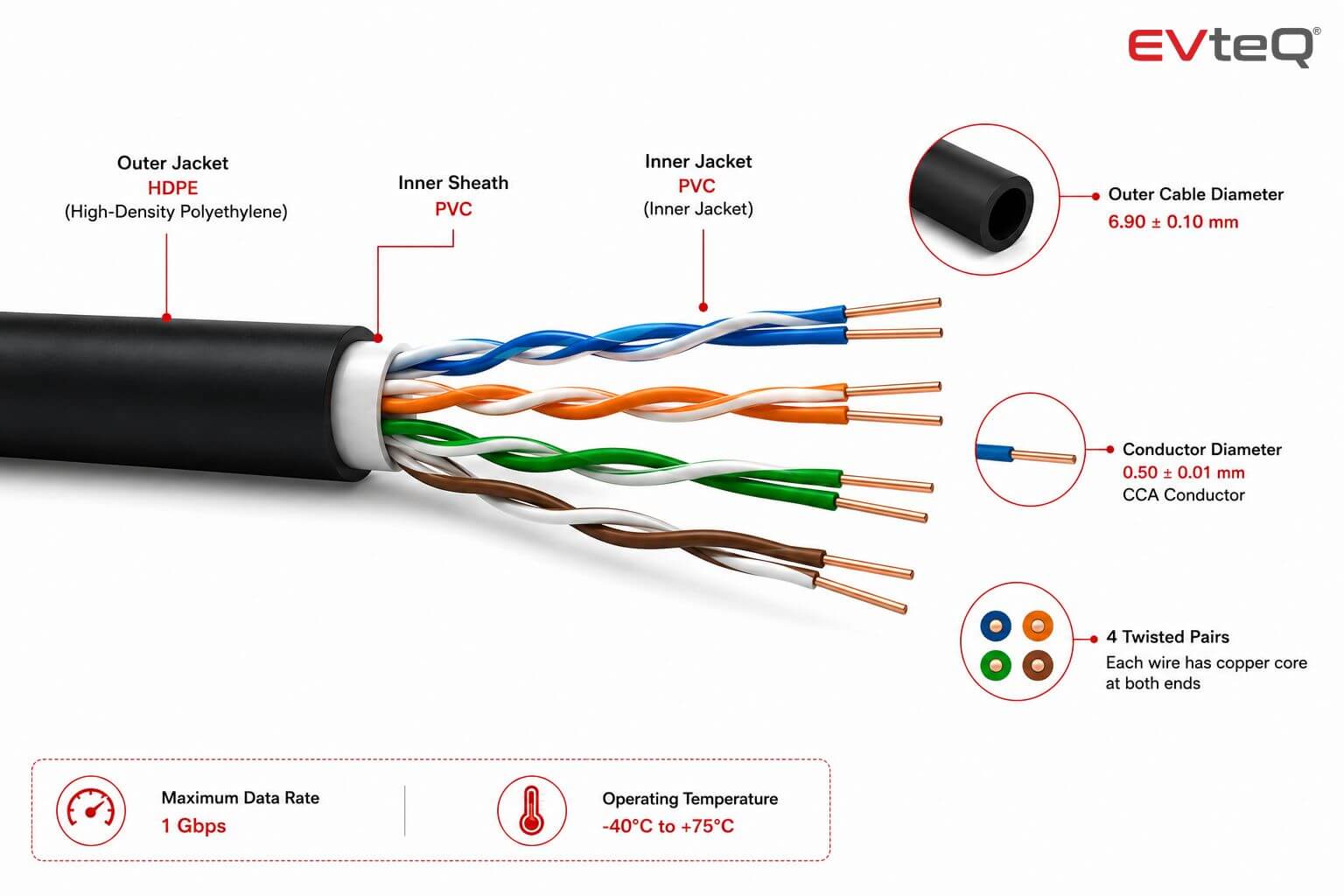

| Outer Cable Diameter | 6.90 ± 0.10 mm |
| Sheath/Jacket Material (Indoor) | PVC (Inner Jacket) |
| Inner Sheath/Jacket Material (Outdoor) | PVC |
| Outer Sheath/Jacket Material (Outdoor) | HDPE (High-Density Polyethylene) |
| Armouring Material | No Armouring |
| PERFORMANCE | |
| Maximum Data Rate | 1 Gbps |
| Operating Temperature | -40°C to +75°C |
